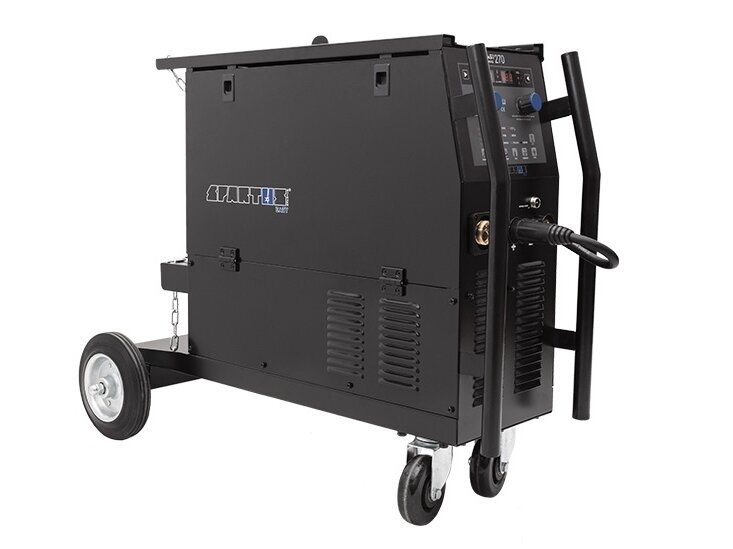

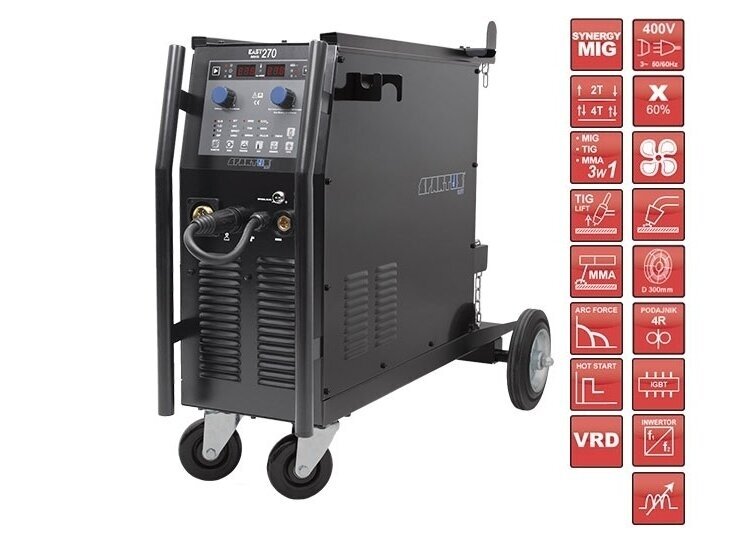

SYNERGIC MIG/MAG SPARTUS® EasyMIG 270 welder, 250A, 400V
SYNERGIC MIG/MAG SPARTUS® EasyMIG 270 welder, 250A, 400V
Code: EasyMIG270-
Input 3× 400V ± 10% 50 / 60 Hz Welding current MIG [A] 50-250 Duty cycle [%] 60% Welding current TIG [A] 10-250 Welding current MMA [A] 10-220 Wire feeding speed [m/min] 2 - 15 Wire speed built-in, 4-roll gear Welding wire spool[kg]/[mm] ≤ 15 / ∅200 / ∅300 Wire diameter ∅ [mm] 0.8 / 1.0 / 1.2 2T/4T Control Yes TIG Lift Yes MMA welding mode Yes Hot Start Yes Arc Force Yes Wire test Yes Change polarity Yes Current consumption [A] 12 Insulation class F SProtection class IP21s Weight [kg] 38 Dimensions [mm] 920 × 470 × 740 SPARTUS® EasyMIG 270 is modern, inverter and professional MIG/MAG welding machine with inert or active gas shielding and MMA coated electrode welding. SPARTUS® EasyMIG 270 is powered by 400V three-phase.
The maximum welding current for SPARTUS® EasyMIG 270 is 250A for MIG/MAG and 230A for MMA. 60% high working cycle ensures stable output parameters during long-term welding work.

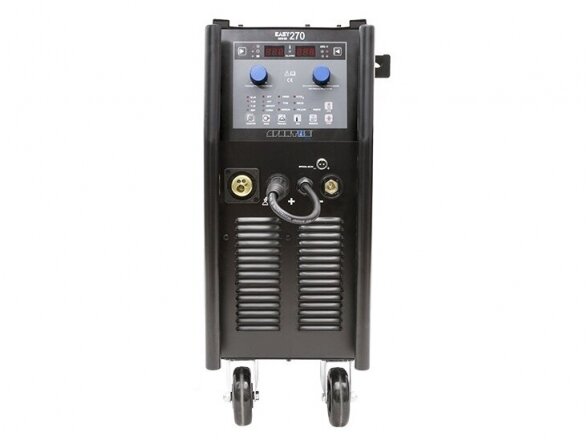

SPARTUS® EasyMIG 270 is equipped in the synergy system for MIG/MAG welding with the ability to manually change parameters. You can choose the following programs: CO2 steel, mixed steel, core wire welding. Making the synergy correction is signalled by flashing LED on the device's panel.
SPARTUS® EasyMIG 270 has a set of features supporting the welding process: 2T/4T work mode, inductance regulation, Arc Force, Hot Start and VRD.

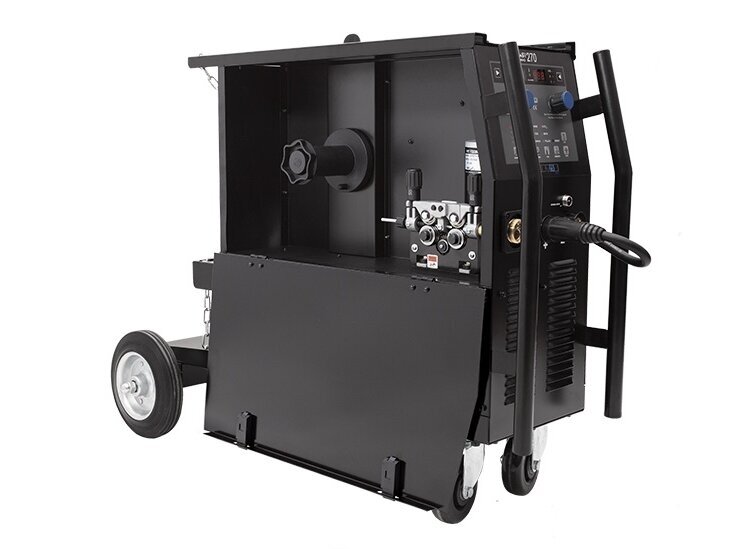

Professional four-roller feeder ensures stable welding wire feed. Resistant, robust and compact design makes it perfect equipment for difficult conditions, and there is a possibility of mounting a technical gas cylinder on the chassis of the device.
SPARTUS® EasyMIG 270 is a compact device designed mostly for efficient welding of steel constructions and working in difficult workshop conditions.

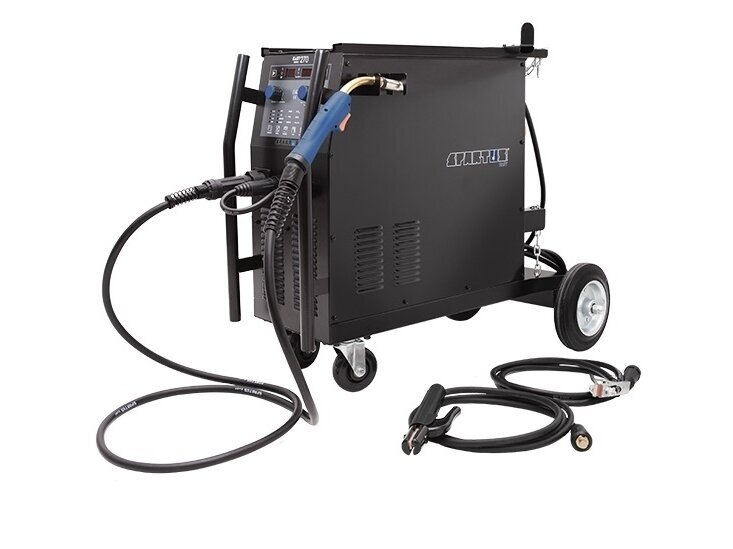

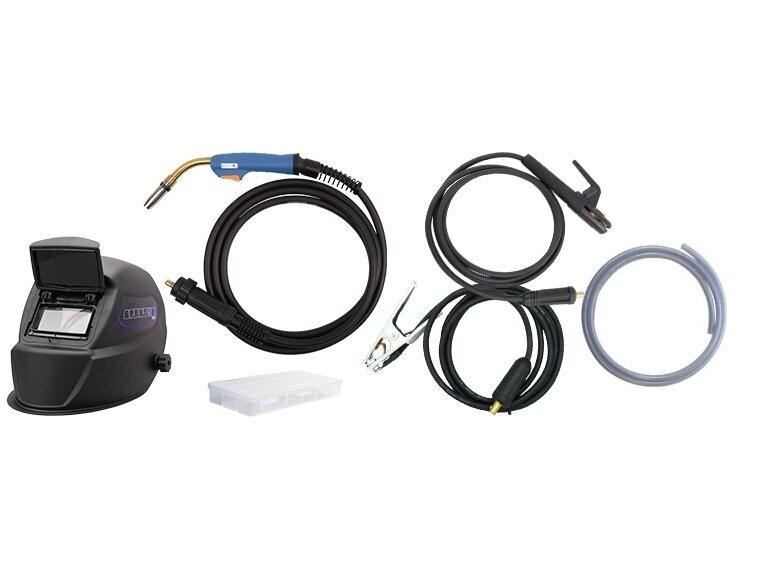

Package:
Device SPARTUS® EasyMIG 270

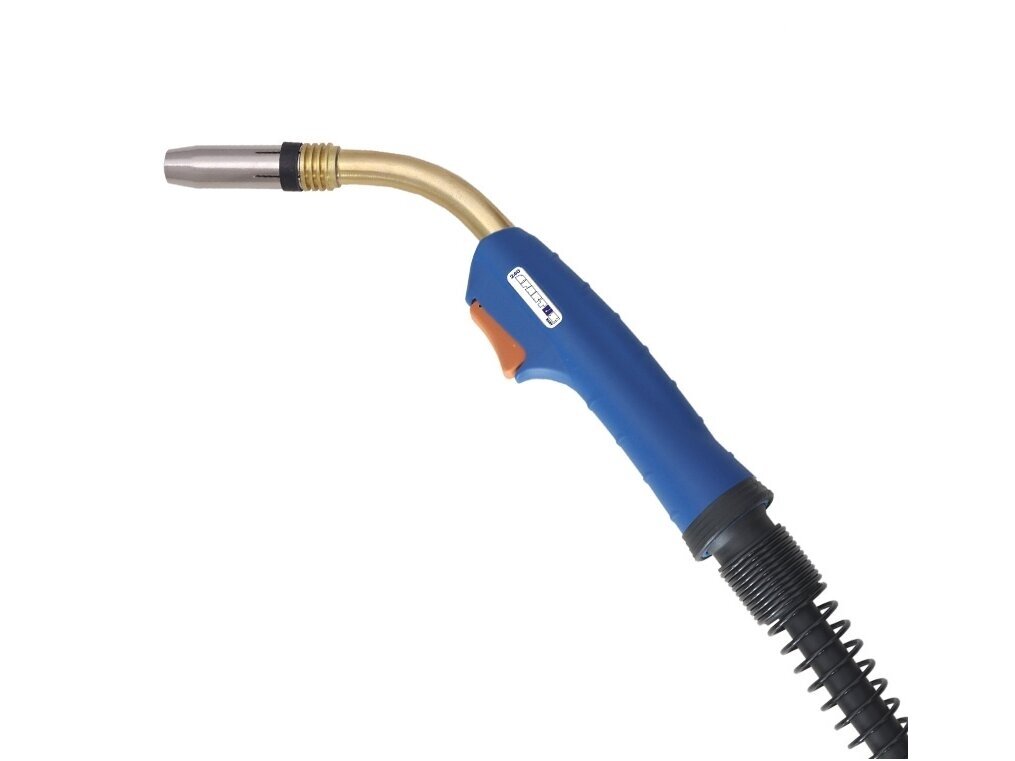

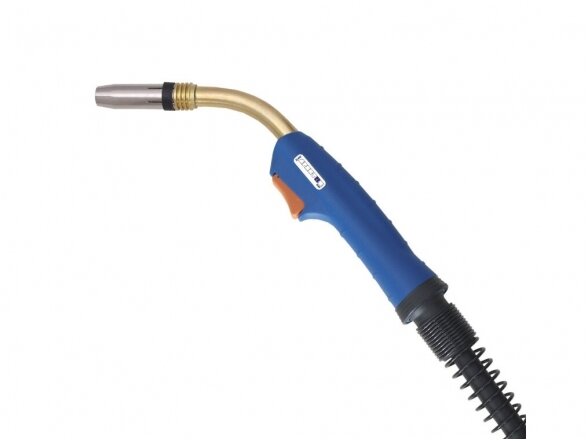

MIG gun SPARTUS® SPE 240 3m
Electrode holder
Work clamp
Gas hose
User's manual -
