MIG/MAG inverter SPARTUS® EasyMIG 320LCD welder, 300A, 400V
MIG/MAG inverter SPARTUS® EasyMIG 320LCD welder, 300A, 400V
Code: EasyMIG325-
Input
3× 400V ± 10% 50 / 60 Hz
Welding current MIG [A]
50 – 300
Duty cycle [%]
60
Output working voltage MIG [V]
16,5 – 29
Wire feeding speed [m/min]
2 – 18
Wire feeder
built-in, 4-roll gear
Welding wire spool[kg]/[mm]
≤ 15 / ∅200 / ∅300
Wire diameter ∅ [mm]
Steel 0.8 / 1.0 / 1.2
Aluminum 1.0 / 1.22T/4T Control
Yes
TIG Lift
Yes
Welding current TIG [A]
10 – 300
MMA welding mode
Yes
Welding current MMA [A]
10 – 250
Hot Start
Yes
Arc Force
Yes
Wire test
Yes
Change polarity
Yes
Current consumption [A]
17
Weight [kg]
38
Dimensions [mm]
920 × 470 × 740

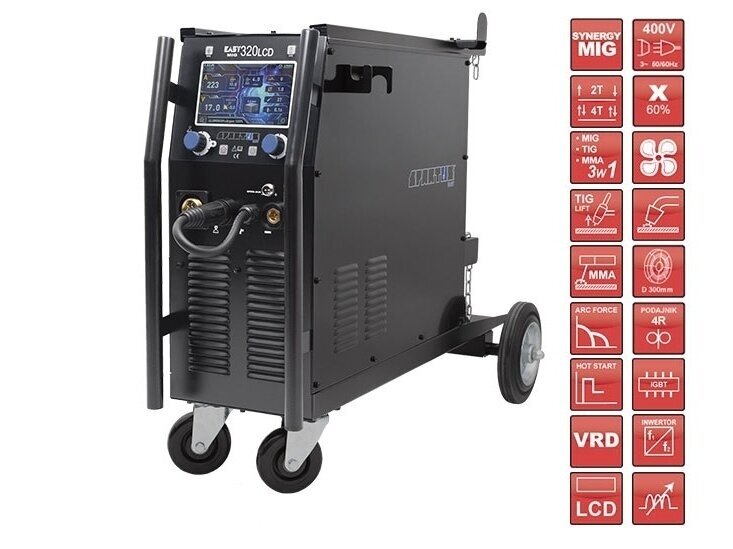

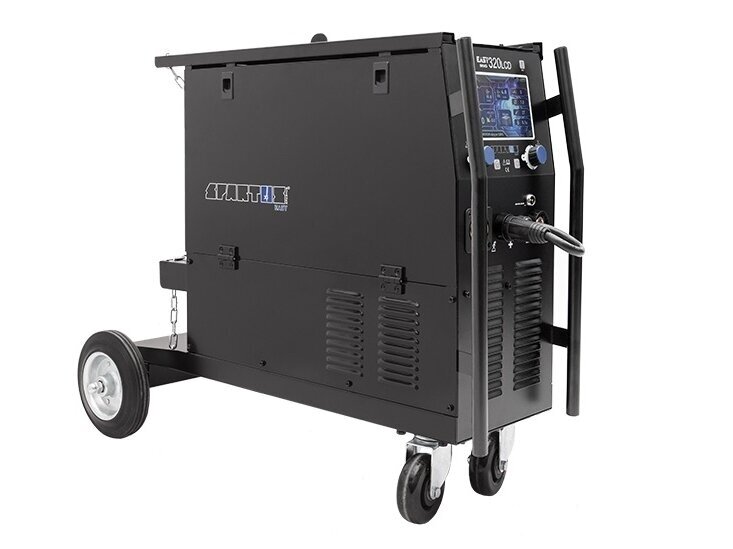

SPARTUS® EasyMIG 320LCD is modern, inverter and professional MIG/MAG welding machine with inert or active gas shielding and MMA coated electrode welding. SPARTUS® EasyMIG 320LCD is powered by 400V three-phase. The maximum welding current for SPARTUS® EasyMIG 320LCD is 300A for MIG/MAG and 250A for MMA. 60% high working cycle ensures stable output parameters during long-term welding work.
SPARTUS® EasyMIG 320LCD is equipped in the synergy system for MIG/MAG welding with the ability to manually change parameters. You can choose the following programs: CO2 steel, mixed steel, core wire welding. Making the synergy correction is signalled by flashing LED on the device's panel.
The device is equipped with the following programs: CO2 steel, mixed steel, aluminium, core wire welding, as well as manual welding mode.
SPARTUS® EasyMIG 320LCD has a set of features supporting the welding process: 2T/4T work mode, inductance regulation, Arc Force, Hot Start and VRD.

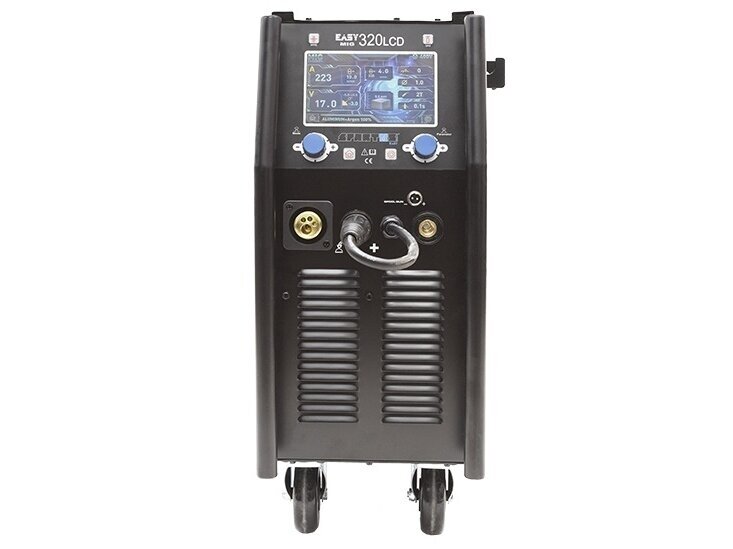

The modern LCD allows an easy and quick setting of the welding voltage and to manage the device functions. When the parameters are corrected, the display sets the weld shape dependence regarding the voltage and shows graphically the recommended thickness of the material for the given current.

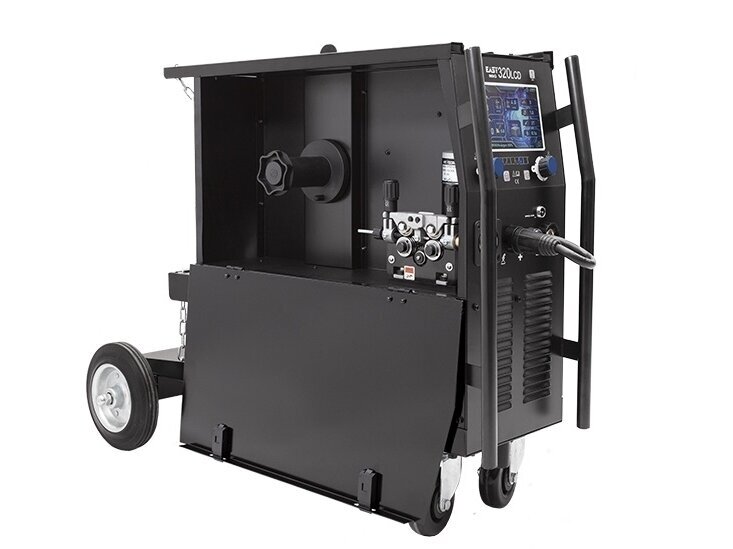

Professional four-roller feeder ensures stable welding wire feed. Resistant, robust and compact design makes it perfect equipment for difficult conditions, and there is a possibility of mounting a technical gas cylinder on the chassis of the device.

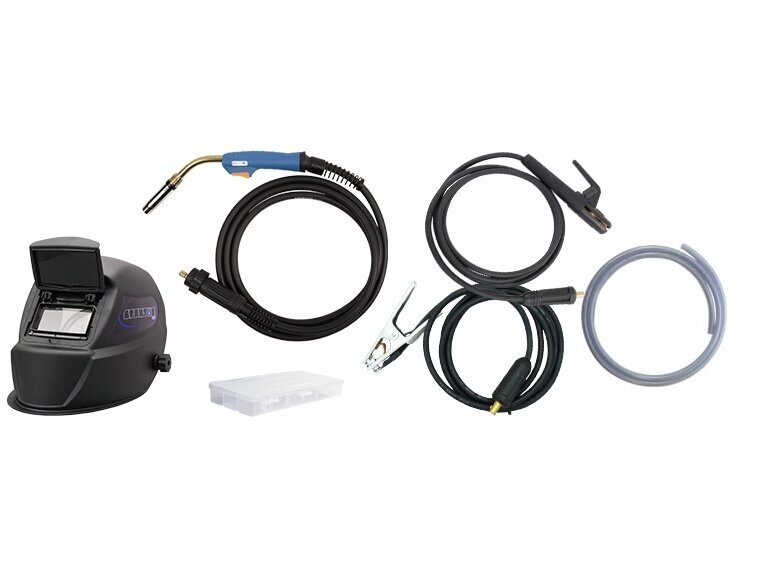

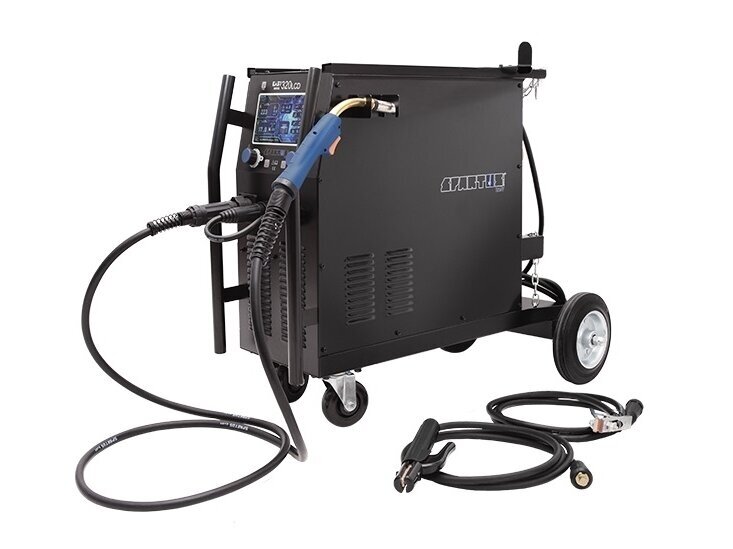

SPARTUS® EasyMIG 320LCD is a compact device designed mostly for efficient welding of steel constructions and working in difficult workshop conditions.Package:
- Device SPARTUS® EasyMIG 320LCD

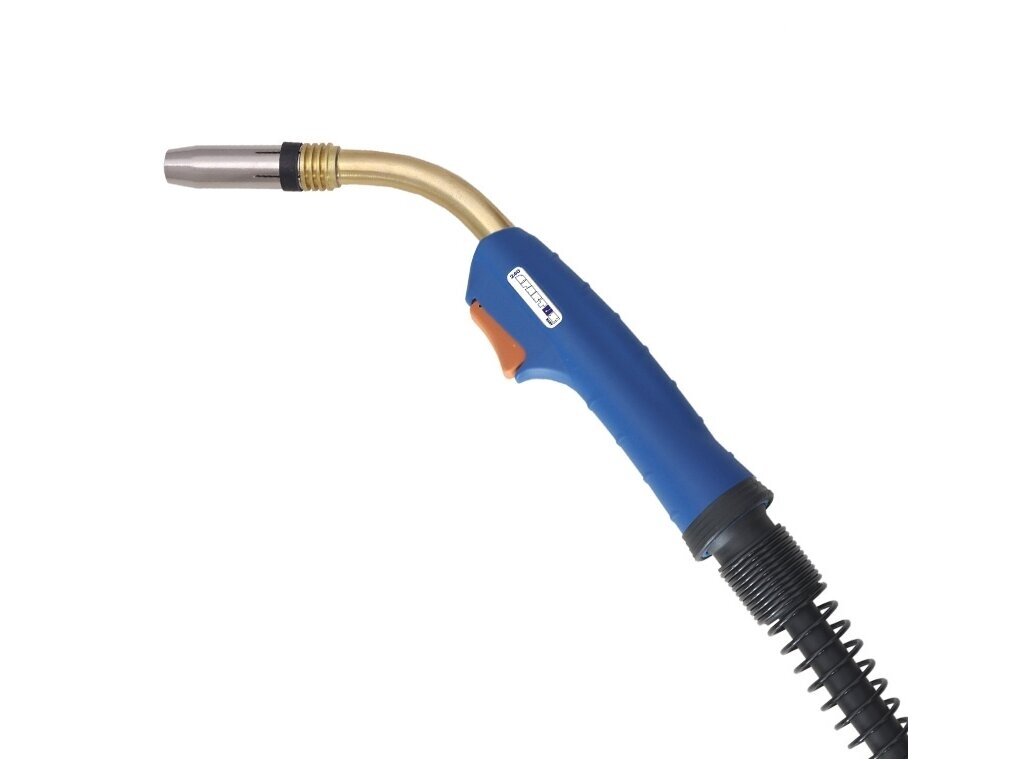

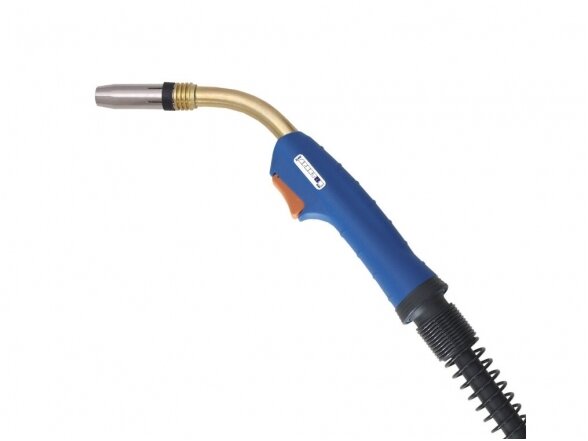

- MIG gun SPARTUS® SPE 360 3m
- Electrode holder
- Work clamp
- Gas hose
- User's manual
-
